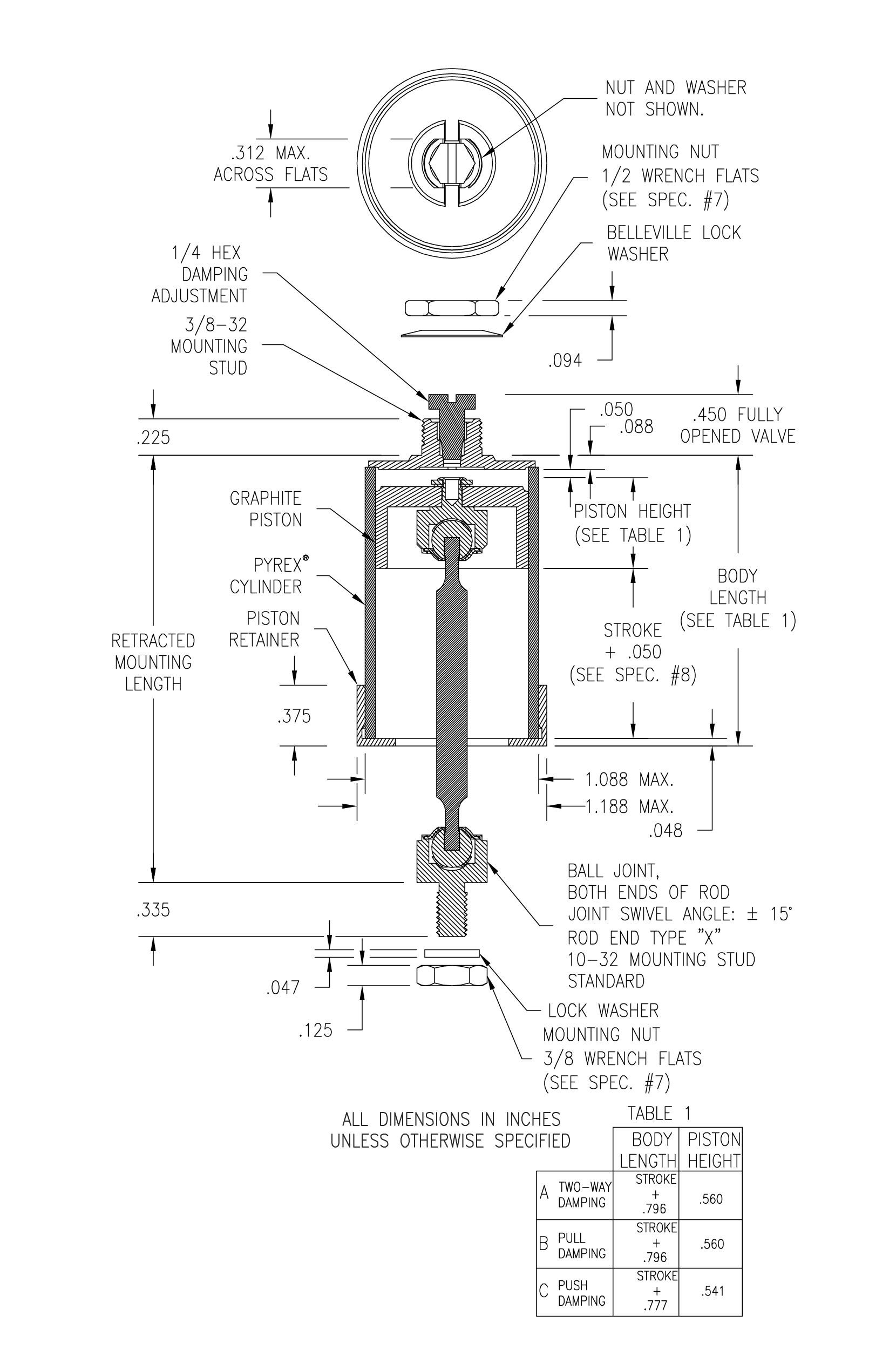

Custom Dashpot Model 240

Model: 2K240

CONFIGURE YOUR PART

Bore: .945″ (24 mm)

Strokes: Increments of .125 inch to 3 decimal places (min, .125 inch)

  1. Damping Coefficient
    0-20 lb/(in/s) adjustable
    0-35 N/(mm/s)
  2. Force Guidelines
    Pull Damping: 9 lb max (40 N)
    Push Damping: 7 lb max (31.1 N)
  3. Friction
    Coefficient: .2
    Force without side load: < 1g
  4. Operating Temperature Range
    -55°C to +150°C
    If operating at temperatures above
    +70°C, please advise factory.
  1. Mounting Hole
    Rectangular: .312″ x .375″ or
    8 mm x 10 mm
    Round: .375″ or 10 mm
  2. Suggested Mounting Bracket Thickness
    .060″ – .093″ (1.52 – 2.36mm)
  3. Mounting Nut Torque
    Head: 4-8 in-lb (0.45-0.9Nm)
    Rod End: 5-15 in-lb (0.56-1.7Nm)
  4. Stroke
    Full stroke is obtained with customer
    held mounting tolerance of ± .015″
    (0.38 mm).
CONFIGURE YOUR PART
2K240
Select Damping Direction
  • Two-Way
    A
  • Pull
    B
  • Push
    C
Enter Stroke
Enter Retracted Mounting Length
Rod Configuration
  • .187 DIA. ALUMINUM ( Supply pressures to 100 psi max )
    T
  • 10-32 THREADED PLAIN END
    V
  • BALL UNIVERSAL - 10 - 32 THREAD
    X
  • PLAIN END
    W
Other Options
  • IMPACT RESISTANT CASE-EPDM
    K
  • DAMPING ADJUSTMENT KNOB-NYLON (DO NOT EXCEED .093 MOUNTING BRACKET THICKNESS)
    M
  • CYLINDER PORT (CROSS SLOT)
    Please specify to 3 decimal places
    R
