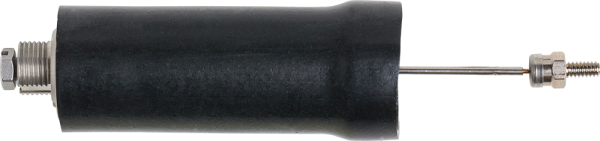

Stock Dashpot Model 160

Model: 2KS160

CONFIGURE YOUR PART

Bore: .627″ (15.93 mm)

Strokes: 0.5, 1, 1.5, 2, 3

  1. Damping Coefficient
    0-5 lb/(in/s) adjustable
    0-0.88 N/(mm/s)
  2. Force Guidelines
    Pull Damping: 4 lb max (18 N)
    Push Damping: 3 lb max (13 N)
  3. Friction
    Coefficient: .2
    Force without side load: < 1g
  4. Operating Temperature Range
    -55°C to +150°C
    If operating at temperatures above
    +70°C, please advise factory.
  1. Mounting Hole
    Rectangular: .312″ x .375″ or
    8 mm x 10 mm
    Round: .375″ or 10 mm)
  2. Suggested Mounting Bracket Thickness
    .060″ – .093″ (1.52 – 2.36mm
  3. Mounting Nut Torque
    Head: 4-8 in-lb (0.45-0.9Nm)
    Rod End: 2-5 in-lb (0.23-0.56Nm)
  4. Stroke
    Full stroke is obtained with customer held mounting tolerance of ± .015″ (0.38 mm).
CONFIGURE YOUR PART
2KS160
Select Damping Direction
  • Two-Way
    A
  • Pull
    B
  • Push
    C
Stroke (Inches)
Rod Configuration
  • .058 DIA 304 STAINLESS STEEL ( Supply pressures to 35 psi max )
    N
  • BALL UNIVERSAL - 4-40 THREAD
    F
  • LOOP WITH .156 ID REMOVABLE RULON BUSHING
    Y
  • .187 DIA. ALUMINUM ( Supply pressures to 100 psi max )
    T
  • BALL UNIVERSAL - 10 - 32 THREAD
    X
Included Accessories
  • IMPACT RESISTANT CASE-EPDM
    K
  • DAMPING ADJUSTMENT KNOB-NYLON
    M
