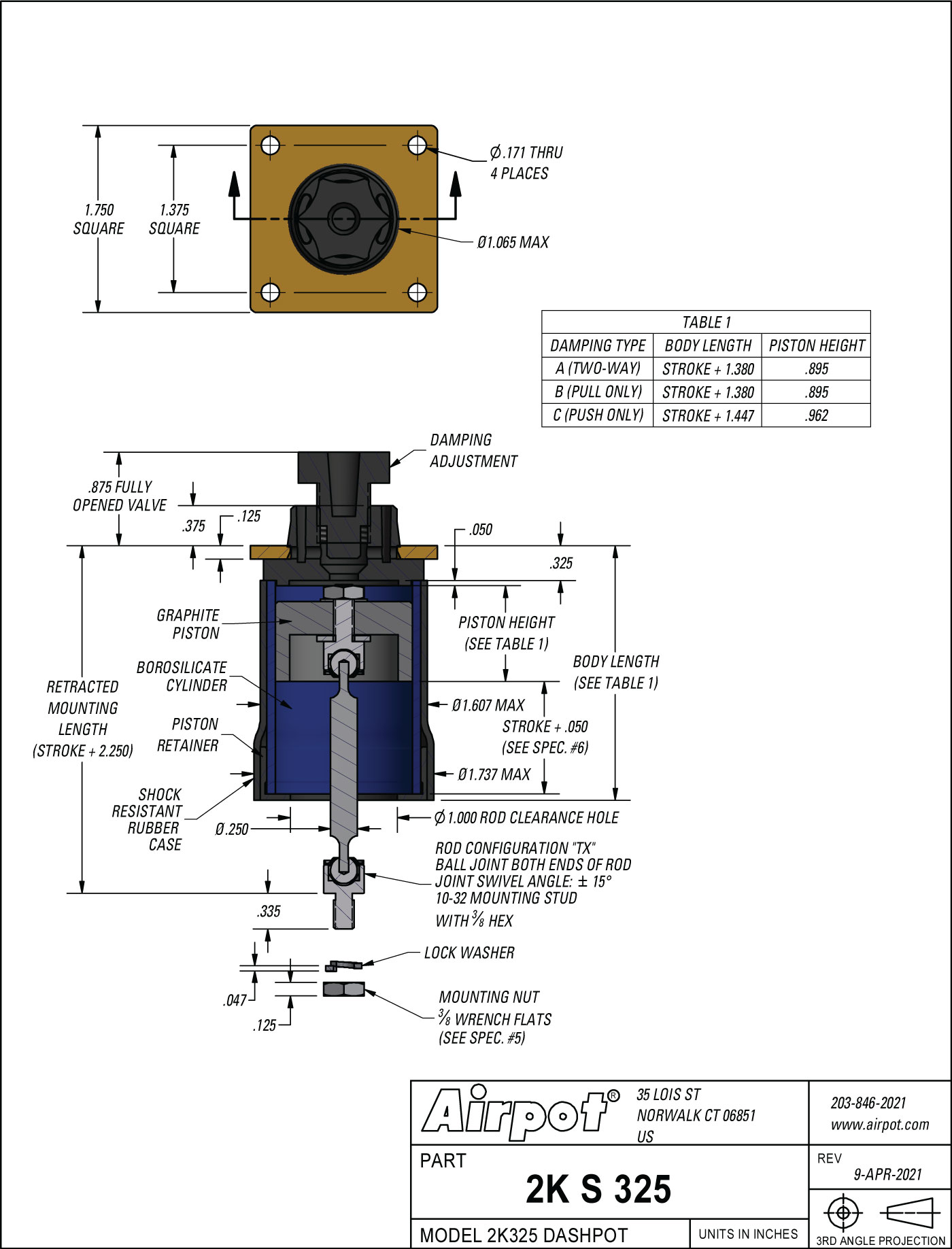

Stock Dashpot Model 325

Model: 2KS325

CONFIGURE YOUR PART

Bore: 1.281″ (32.5 mm)

Strokes: 0.5, 1, 2, 3

  1. Damping Coefficient
    0-40 lb/(in/s) adjustable
    0-7 N/(mm/s)
  2. Force Guidelines
    Pull Damping: 17 lb max (75.62 N)
    Push Damping: 13 lb max (57.83 N)
  3. Friction
    Coefficient: .2
    Force without side load: < 4g
  4. Operating Temperature Range
    -55°C to +125°C
    If operating at temperatures above
    +70°C, please advise factory.
  1. Mounting Nut Torque
    Rod End: 5-15 in-lb (0.56-1.7Nm)
  2. Stroke
    Full stroke is obtained with customer
    held mounting tolerance of ± .015″
    (0.38 mm).
CONFIGURE YOUR PART
2KS325
Select Damping Direction
  • Two-Way
    A
  • Pull
    B
  • Push
    C
Stroke (Inches)
Rod Configuration
  • .250 DIA S.S - STANDARD
    T
  • BALL UNIVERSAL - 10 - 32 THREAD
    X
Included Accessories
  • IMPACT RESISTANT CASE-EPDM
    K
